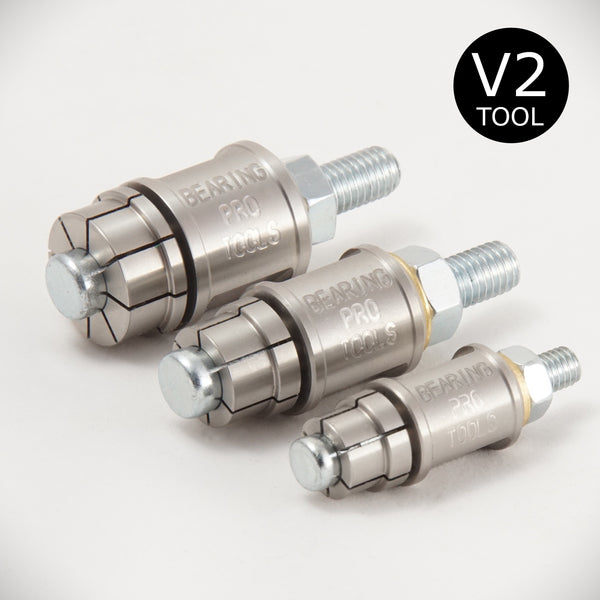

Each kit is tailor made with all of the tool sizes required to remove the rear suspension pivot bearings from the selected Merida frame (one, two, three or more tools depending on the frame)
Designed to extract the sealed cartridge bearings that are found on many brands of bicycle hub and full suspension MTB frames, this tool can even remove the small bearings, 'blind bearings' and back-to-back bearings that other tools can't
Removes 'blind' and back to back bearings
Each puller is engraved with it's size for easy identification
Precision engineered from 303 stainless steel or 6082-T6 aluminium
Designed & manufactured in the UK
How To
The bearing puller tool is simple to use. As well as the puller you will need a pair of spanners (or one spanner and a set of pliers), a hammer and a rod/drift/old bolt
Insert the circular end of the tool into the centre of the bearing.Grip the hexagonal body of the tool with a spanner or pliers and tighten the nut. This will expand the tool, gripping the bearing
With the hub/frame supported on a bench or block of wood, the bearing and tool can be tapped out together by simply insert a rod/drift/old bolt into the other side of the bearing and tapping the end of the rod with a hammer
See our Manuals page to download the more detailed instruction sheets which come with our puller orders, now available in several languages.
Here's a quick demo of the tool's use on a hub:
Note that each tool is specific to one bearing size. It is designed to match the internal diameters and width of the bearing and can't be used on bearings of different size.
Presses

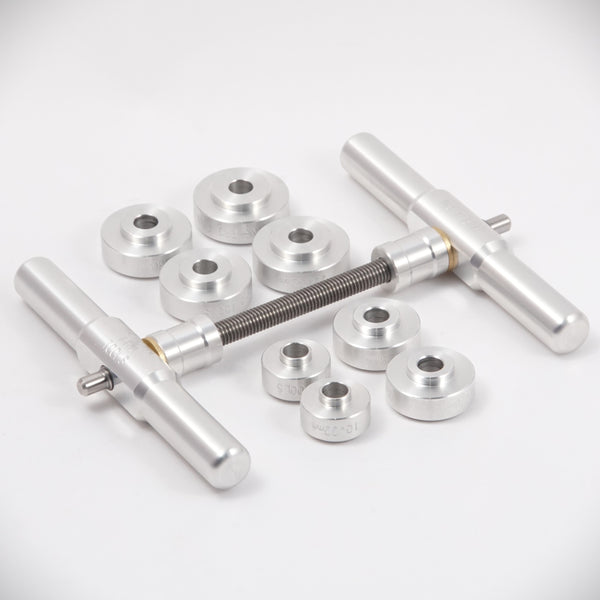

See also our bearing presses, which are available in all of the same sizes and kits as our bearing pullers
Ourtools can be selected either by the bearing size or by the bearing's standard reference code.
Standard references take the form of a three or four digit number, such as 688, or 6902 for example. These codes are often moulded onto the bearing's seal. You might see something like 6902-2RS on the seal. The first digits are the standard reference. The second part (2RS in this case) refers to the seal type and doesn't matter for tool selection.
Alternatively, tools can be selected by their inside (ID) and outside (OD) diameters and width.
Note that each tool is specific to one bearing size and can’t be used on bearings with different dimensions.
If you need any help then please feel free to email us.
