Our workshop sets provide a comprehensive selection of tool sizes, aimed primarily at the professional workshop environment.

The sizes chosen reflect the most common sizes encountered in bike maintenance.

The wind-out blind bearing puller consists of two parts:

1. An inner puller similar to our V2 expanding blind bearing puller, that matches the bearing ID and width
2. An outer cup that should be selected to be 1-3mm larger than the bearing OD

The inner drifts and outer cups can be mixed and matched to suit a wide range of bearing sizes.

Each tool is engraved with it's size for easy identification.

A detailed description of our wind-out blind bearing pullers can be found here.

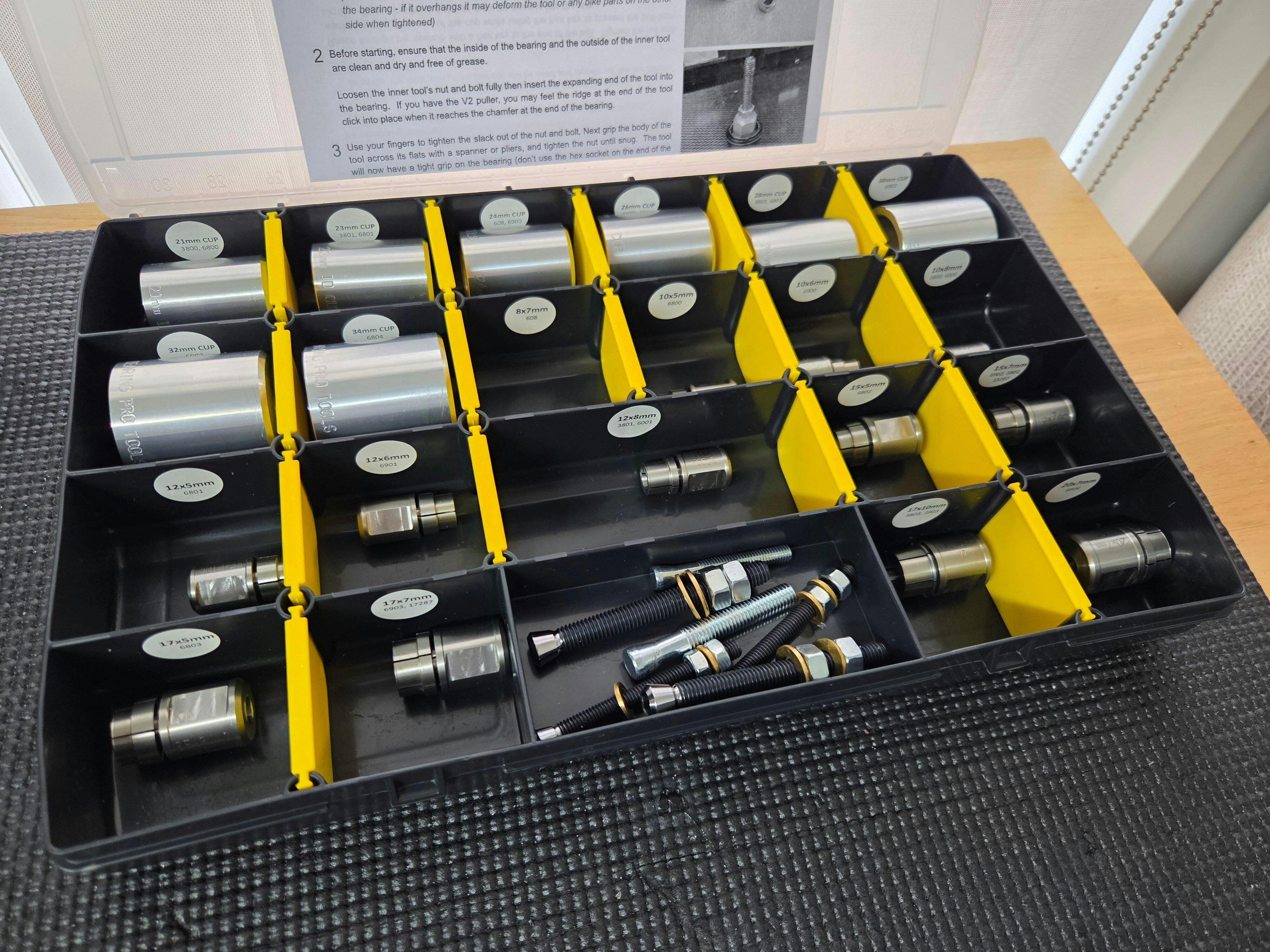

Each workshop set includes:

• Inner puller sizes 8x7mm, 10x5mm, 10x6mm, 10x8mm, 12x5mm, 12x6mm, 12x8mm, 15x5mm, 15x7mm, 17x5mm, 17x7mm, 17x10mm, 20x7mm (select to match bearing ID and width)
• Outer cup sizes 21mm, 23mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm (select to be 1-3mm larger than bearing OD)
• Two wind-out bolts for 8-12mm tools and 2 bolts for 15-20mm tools
• Two spare bolts to allow wind-out tools to also be used as tap-out tools
• Tough segmented organiser box
• Laminated instruction sheet (English default, other languages on request)
• 2-year no-quibble warranty

Please allow 2 working days for dispatch.

Our tools can be selected either by the bearing's dimensions or by the bearing's standard reference code.

Standard references take the form of a three to five digit number, such as 688, or 6902 for example.  These codes are often provided in the bike's user manuals, or moulded onto the bearing's seal. You might see something like 6902-2RS on the seal. The first digits are the standard reference.  The second part (2RS in this case) refers to the seal type and doesn't matter for tool selection.

While the letter & numbers after the baring ref usually refer to the type of seal, you should keep an eye out for the suffix 'E', for example 698-E.  This denotes that the inner race of the bearing is extended, which will affect puller and press selection.

Alternatively, tools can be selected by their inside (ID) and outside (OD) diameters and width (W).

Note that each tool is specific to one bearing size and can’t be used on bearings with different dimensions.

If you need any help then please feel free to email us!  We usually reply within 1 working day.
