Deviate Idler Bearing Puller

***  Buy one, get one 30% off any mix of pullers and presses (applies to individual tools only, not kits) ***

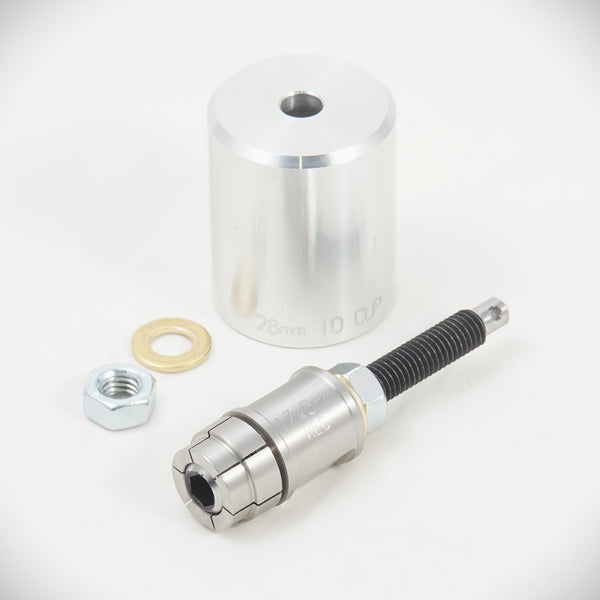

This tool is a variation on our Wind-Out Blind Bearing Puller, adapted to fit the specific requirements of the 6803 idler bearings found on Deviate's Highlander and Claymore bikes.

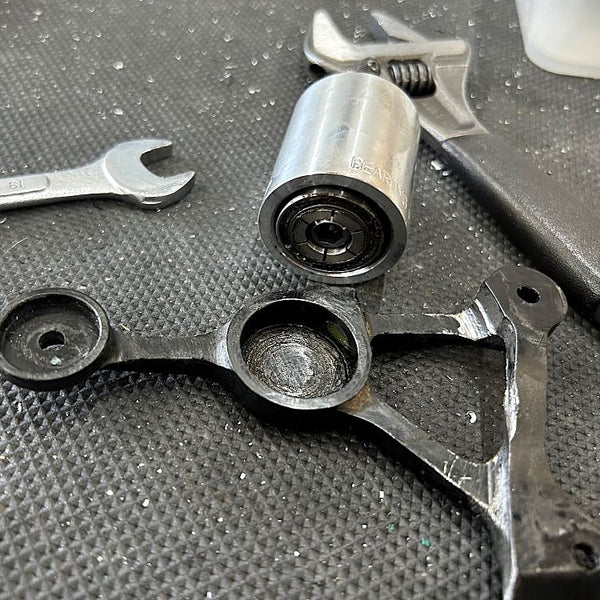

This version of our tool can remove these true blind bearings.  It can remove the bearing from both sides of the idler; the one installed on the swing arm and the one in the aluminium spider.

Most 'blind' bearings found on bikes are not true blind bearings; although there may be a spacer or other bearing obscuring access to one side of the bearing races, there is nearly always still a hole through the centre from the other side.

Deviate's idler bearings are not like that - they are true blind bearings, installed into a flat-bottomed dead-end hole.

How To

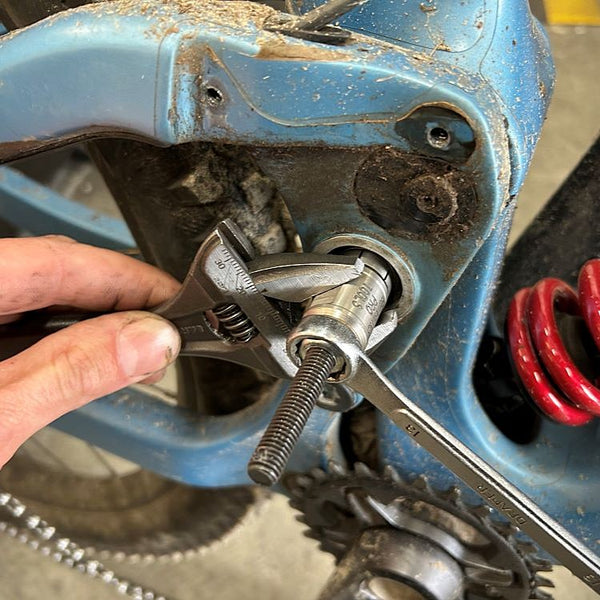

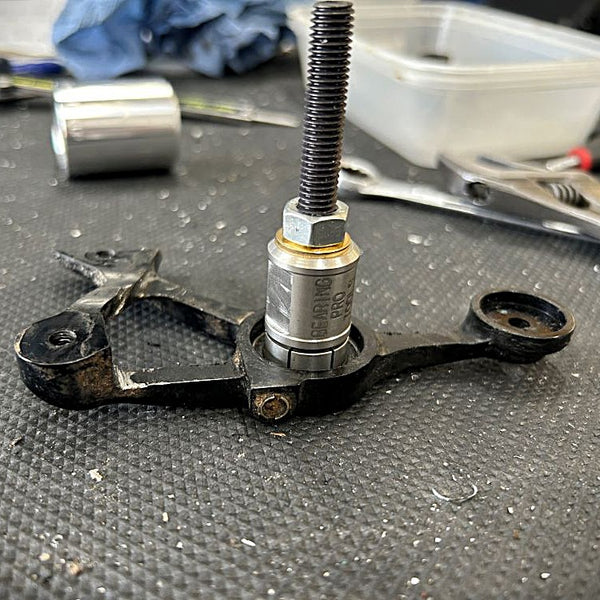

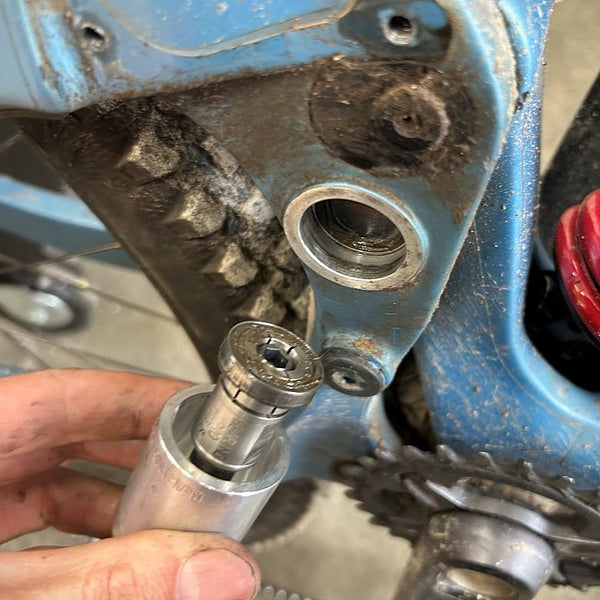

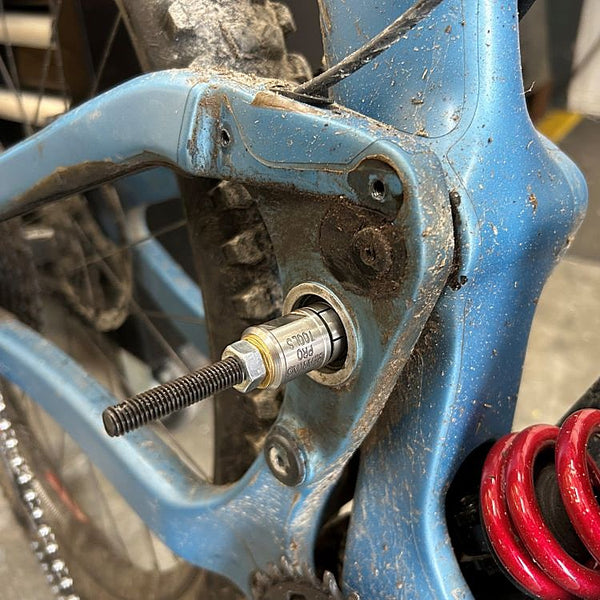

First, the expanding collet is inserted into the bearing and the nut tightened, causing the collet to grip the inside of the bearing.

Note; it is not necessary to remove the oil seal that Deviate install in front of all their bearings beforehand; the tool will remove the seal with the bearing.

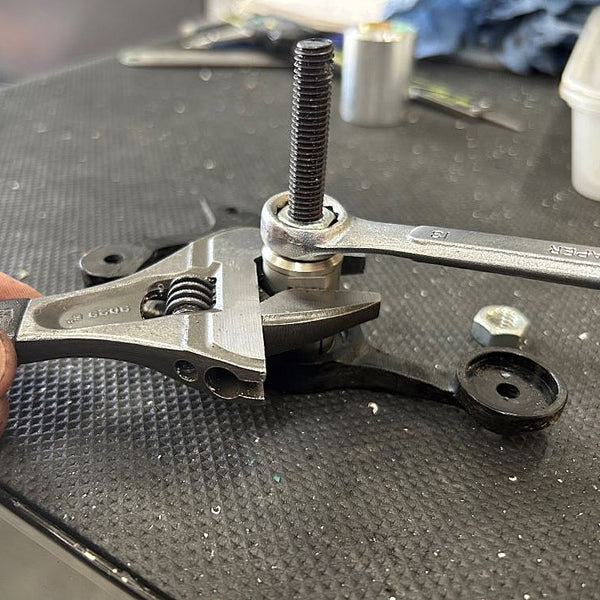

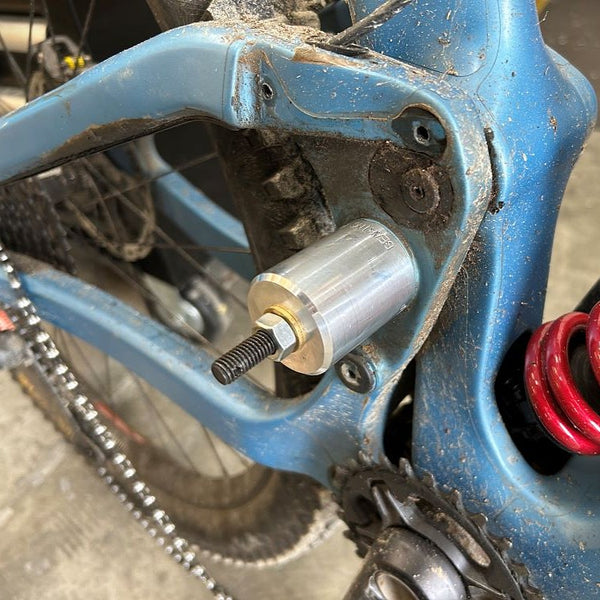

Next, the 'cup' part of the tool is placed over the collet.  A nut is then wound onto the end of the protruding bolt.  Turning this nut draws the expanding collet into the cup.

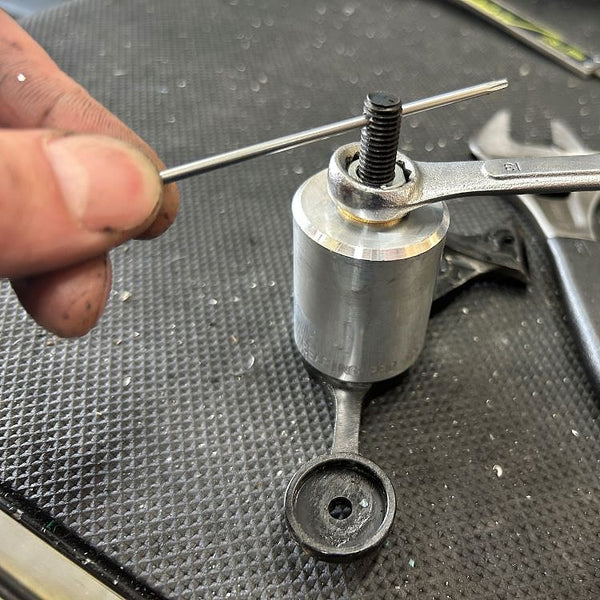

Note; a hole has been added to the end of the bolt; a small screwdriver or allen key can be inserted through this hole to stop the bolt turning as the nut is tightened.

Compatibility

This tool is compatible with the vast majority of Deviate idlers.  To confirm if your version is compatible, check for the location of the grease port on the aluminium spider.  If the grease port is installed on the side of the spider then the tool will be compatible.

On some early Deviates the grease port was installed on the flat face of the spider - unfortunately the tool is unable to remove the bearing from this version of the spider as the grease port projects into the centre of the bearing, blocking access for the tool.  It can still be used on the bearing installed in the chainstay.

This tool can also be used to remove 6803 bearings from other bikes/components, with the same limitations as our regular Wind-Out Blind Bearing Puller.

Our tools can be selected either by the bearing's dimensions or by the bearing's standard reference code.

Standard references take the form of a three to five digit number, such as 688, or 6902 for example.  These codes are often provided in the bike's user manuals, or moulded onto the bearing's seal. You might see something like 6902-2RS on the seal. The first digits are the standard reference.  The second part (2RS in this case) refers to the seal type and doesn't matter for tool selection.

While the letter & numbers after the baring ref usually refer to the type of seal, you should keep an eye out for the suffix 'E', for example 698-E.  This denotes that the inner race of the bearing is extended, which will affect puller and press selection.

Alternatively, tools can be selected by their inside (ID) and outside (OD) diameters and width (W).

Note that each tool is specific to one bearing size and can’t be used on bearings with different dimensions.

If you need any help then please feel free to email us!  We usually reply within 1 working day.
