Bearing Press Workshop Set

Please note that due to staff holidays we won't be able to dispatch workshop sets between the 13th and 24th of October.

You are welcome to place an order during this time and your workshop set will be dispatched on our return.

Apologies for any inconvenience.

Jim

Our workshop sets provide a comprehensive selection of tool sizes, aimed primarily at the professional workshop environment.

The sizes chosen reflect the most common sizes encountered in bike maintenance.

A detailed description of our press can be found here.

Each tool is engraved with it's size for easy identification.

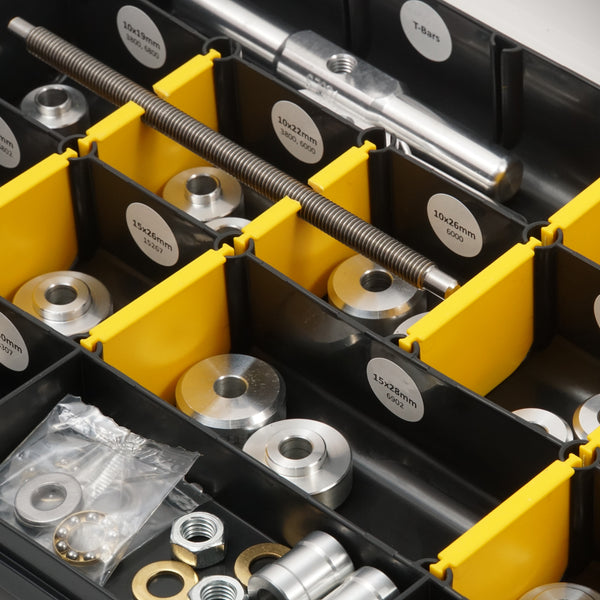

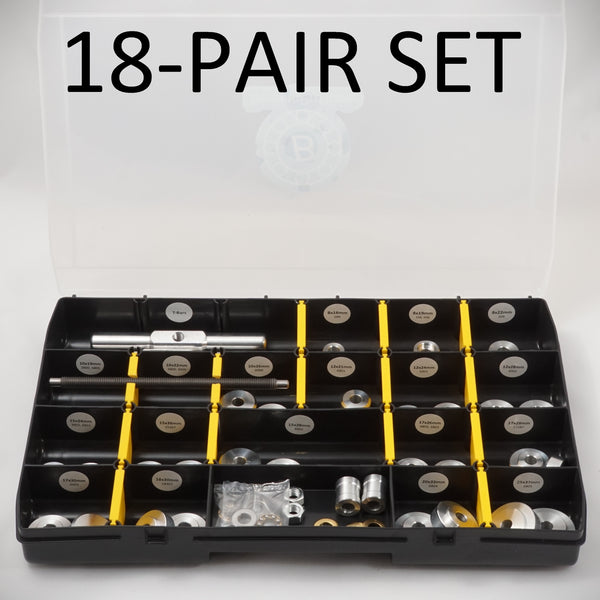

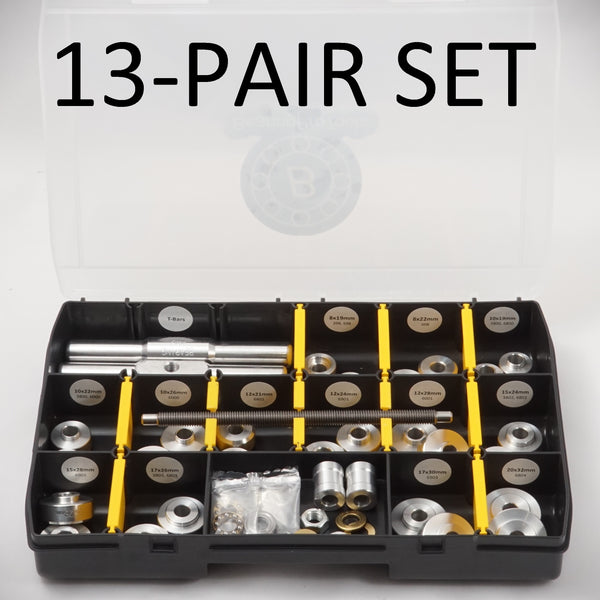

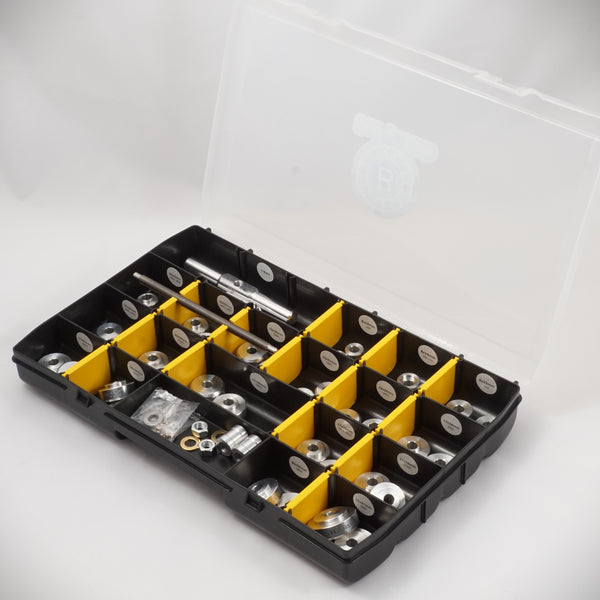

Each workshop set includes:

• Tough segmented organiser box
• Laminated instruction sheet (English default, other languages on request)
• T-bar handles, threaded rod, brass washers, extension tubes and thrust bearings
• A selection of the most commonly needed drift pairs
• 2-year no-quibble warranty

Drift pairs included:

Please allow 2 working days for dispatch.

Our tools can be selected either by the bearing's dimensions or by the bearing's standard reference code.

Standard references take the form of a three to five digit number, such as 688, or 6902 for example.  These codes are often provided in the bike's user manuals, or moulded onto the bearing's seal. You might see something like 6902-2RS on the seal. The first digits are the standard reference.  The second part (2RS in this case) refers to the seal type and doesn't matter for tool selection.

While the letter & numbers after the baring ref usually refer to the type of seal, you should keep an eye out for the suffix 'E', for example 698-E.  This denotes that the inner race of the bearing is extended, which will affect puller and press selection.

Alternatively, tools can be selected by their inside (ID) and outside (OD) diameters and width (W).

Note that each tool is specific to one bearing size and can’t be used on bearings with different dimensions.

If you need any help then please feel free to email us!  We usually reply within 1 working day.
