Bottom Bracket Bearing Puller (Wind-Out Type)

Regular price £14.50

Bearing Puller for Bottom Brackets - Wind-Out Type

***  Buy one, get one 30% off any mix of pullers and presses (applies to individual tools only, not kits) ***



This 'wind-out' type tool is designed to extract the sealed cartridge bearings that are found in many bottom brackets.

We offer two designs of bottom bracket bearing puller:

  1. This 'wind-out' type which is ideal if there is a recess behind the bearing for the tool to gain purchase (more details below).
  2. If you don't have a recess behind your bearing, or if you have a Shimano style pressfit bottom bracket where the whole bottom bracket is replaced rather than just the bearing, then you might be better with our 'expanding type' bottom bracket tool.

Please feel free to drop us a note if you're not sure which you need!



Wind-Out Type

We offer two handle options; a low cost version using a simple nut to pull the bearing, and a premium version with convenient T-bar handle instead of the nut.

  • Bearing are removed straight, kind to your frame
  • We also sell matching bearing presses and offer 30% off every second tool: add two or more extractors or presses to the basket before checking out
  • Shipping is fast and free in the UK
  • Combined shipping for international customers buying more than one extractor or press



How To Use

This extractor tool is simple to use.  As well as the extractor you will need a 6mm allen key (and a 13mm spanner if you haven€™t chosen the optional T-bar handle)



1  The rounded rectangular tab is passed through the bearing sideways and then turned to sit flat behind the bearing
2

Place a washer on the bolt and then pass the bolt through the far side of the bottom bracket and through the hole in the rounded rectangle, so that the threaded end of the bolt sticks out of the bottom bracket.


Use a 6mm allen key to hold the bolt in place and prevent it turning.

3

Place the large €˜cup€™ part on to the end of the bolt, so that the open end faces the bearing. Place a washer on the end of the bolt and then screw on the T-bar handle (or nut).

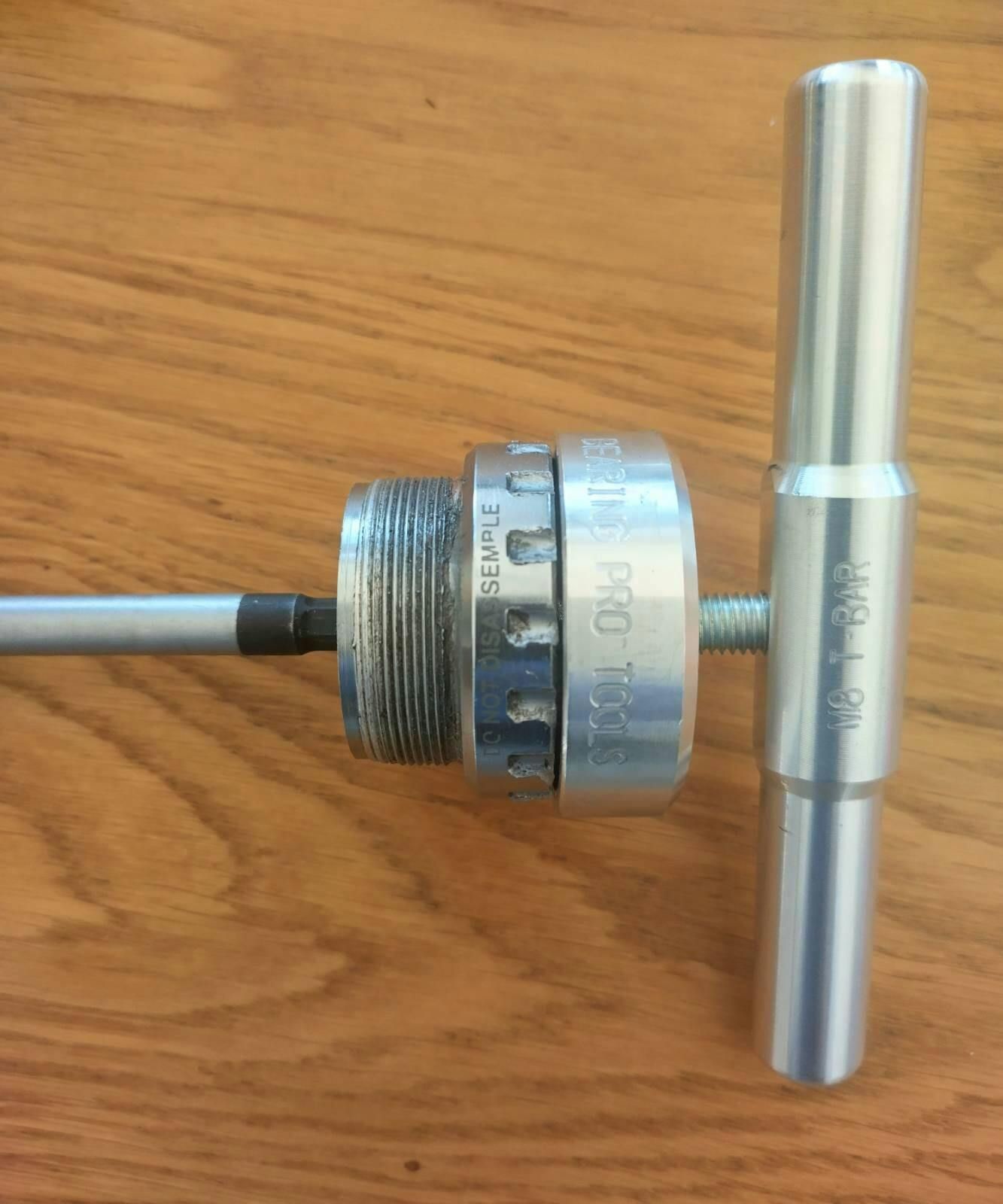

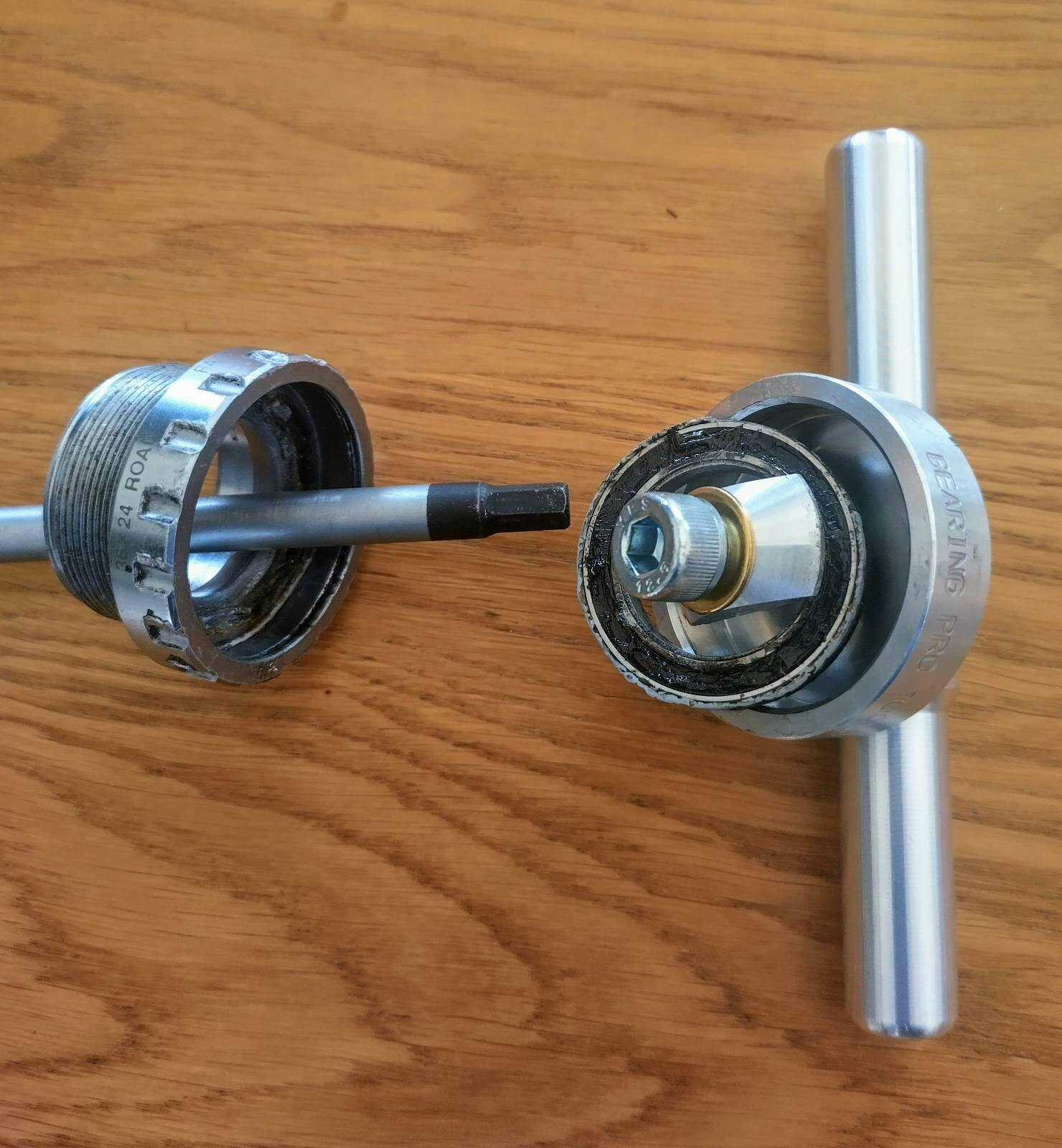

Tightening the T-bar (or nut) on to the flat back of the cup will draw out the bearing. Remember to prevent the other end of the bolt from spinning with the allen key.



Compatibility

This tool is compatible with most bottom brackets with replaceable bearings of the listed sizes but there are a couple of conditions.

Firstly, the cup must have a suitable surface to rest on.  The inside diameter of the cup is 45mm (soon to be 44mm) for 29mm and 30mm pullers, and 40mm (soon to be 39mm) for 24mm and 25mm pullers.  Usually the frame's BB shell will be larger than this giving a sitable surface for the cup to rest on, but if your BB is of the 'outboard' style then there may not be a suitable surface around the bearing (the cup would simply slip over the whole outboard bearing).

Secondly, the recess behind the bearings need only be a few mm deep and wide for the tool to gain purchase on the bearing.

If your BB desn't have these features, or if you have a moulded resin BB like Shimano's where the whole bottom bracket is replaced rather than just the bearings, you might be better with our 'expanding type' puller.

Please feel free to get in touch if you are unsure of which tool would be best for you.  If you find that your BB is incompatible with the tools that you have ordered then you can return the tool to us for a refund.



Bearing Presses

We offer a comprehensive range of bearing presses, available in all of the same sizes and kits as our bearing pullers.  We offer 30% off every second item bought from our single tools menus, including mixes of pullers and presses



Shipping

We aim to dispatch all orders within 1 working day

Orders within the UK will be shipped by Royal Mail RM24 (First Class)

International orders are welcomed and will be shipped by Royal Mail International Standard (Airmail). Delivery times vary but are typically 2-3 days within Europe and 5-10 days worldwide






Our tools can be selected either by the bearing size or by the bearing's standard reference code.

Standard references take the form of a three or four digit number, such as 688, or 6902 for example. These codes are often moulded onto the bearing's seal. You might see something like 6902-2RS on the seal. The first digits are the standard reference.  The second part (2RS in this case) refers to the seal type and doesn't matter for tool selection.

Alternatively, tools can be selected by their inside (ID) and outside (OD) diameters and width.

Note that each tool is specific to one bearing size and can’t be used on bearings with different dimensions.

If you need any help then please feel free to email us.
